The Strasburg Boiler Explosion - Part 1
Incident Overview
July 30, 2021: The Strasburg Boiler Explosion
The Incident
On July 30, 2021, at approximately 4:00 AM, a boiler explosion occurred at the Valley Milk Products facility located at 412 E. King Street in Strasburg, Virginia. The facility is a large industrial and commercial milk plant complex.
At the time of the incident, the facility was unoccupied. Standard production operations had ceased at midnight, with the plant scheduled to remain dormant until 8:00 AM. However, the facility’s boiler remained in continuous operation (24/7) to supply heat for the product pasteurization process and hot water for sanitation.
The Blast Sequence
The explosion originated in the boiler room. According to the investigation report filed by Compliance Partners, the force of the blast propelled the boiler unit through a concrete block wall separating the boiler room from the main production area.
This initial structural failure triggered a secondary chain of impacts within the production floor:
The boiler struck a process tank.
The force of the impact displaced the first tank, driving it into a second tank.
The second tank subsequently struck a third tank.

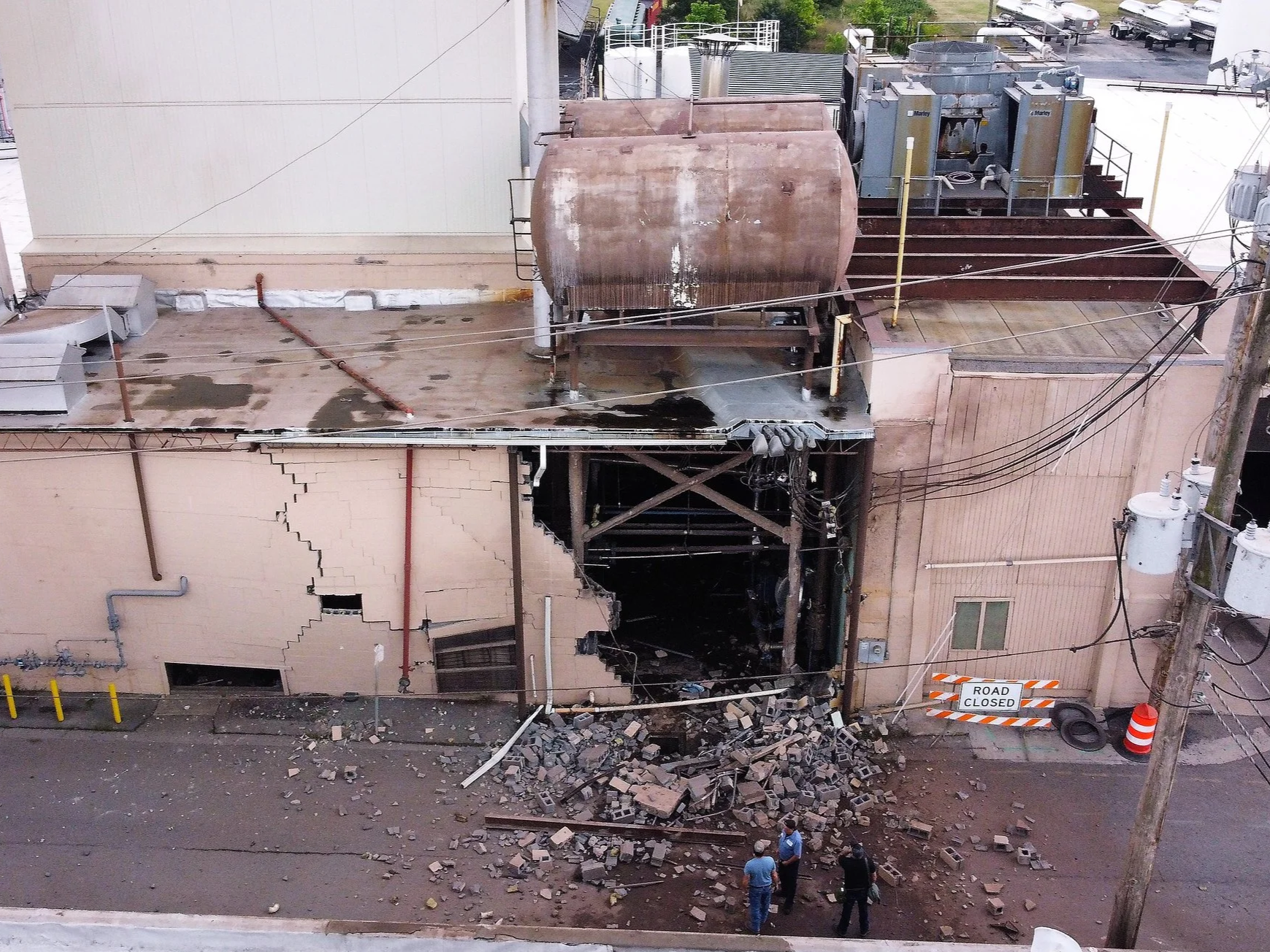

The Shenandoah County Fire Marshal’s investigation noted "significant damage" to the boiler room and all adjoining walls. The blast force also breached the exterior of the building, causing large-scale damage to the west wall facing Acton Place.

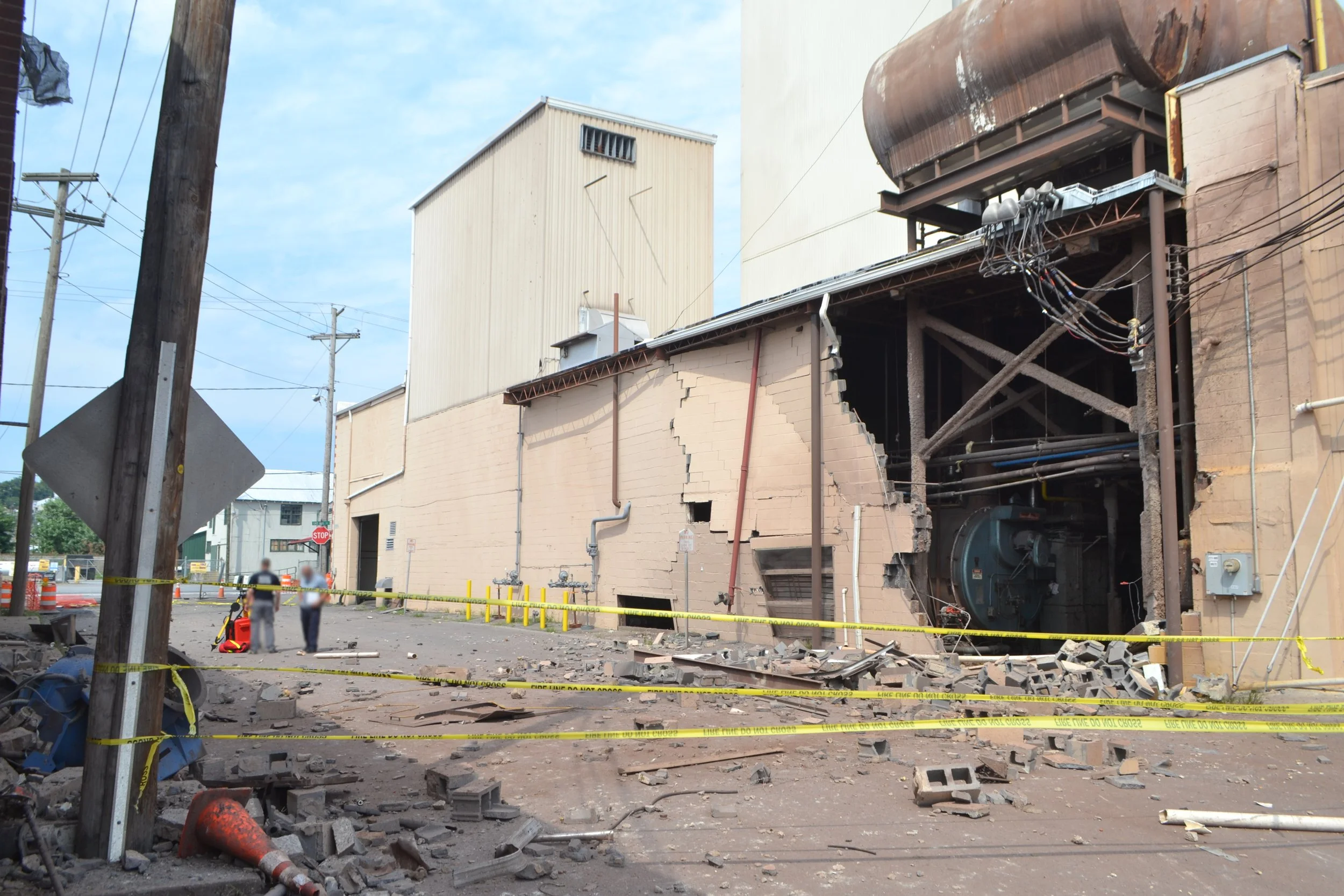

Catastrophic structural failure of the west wall.

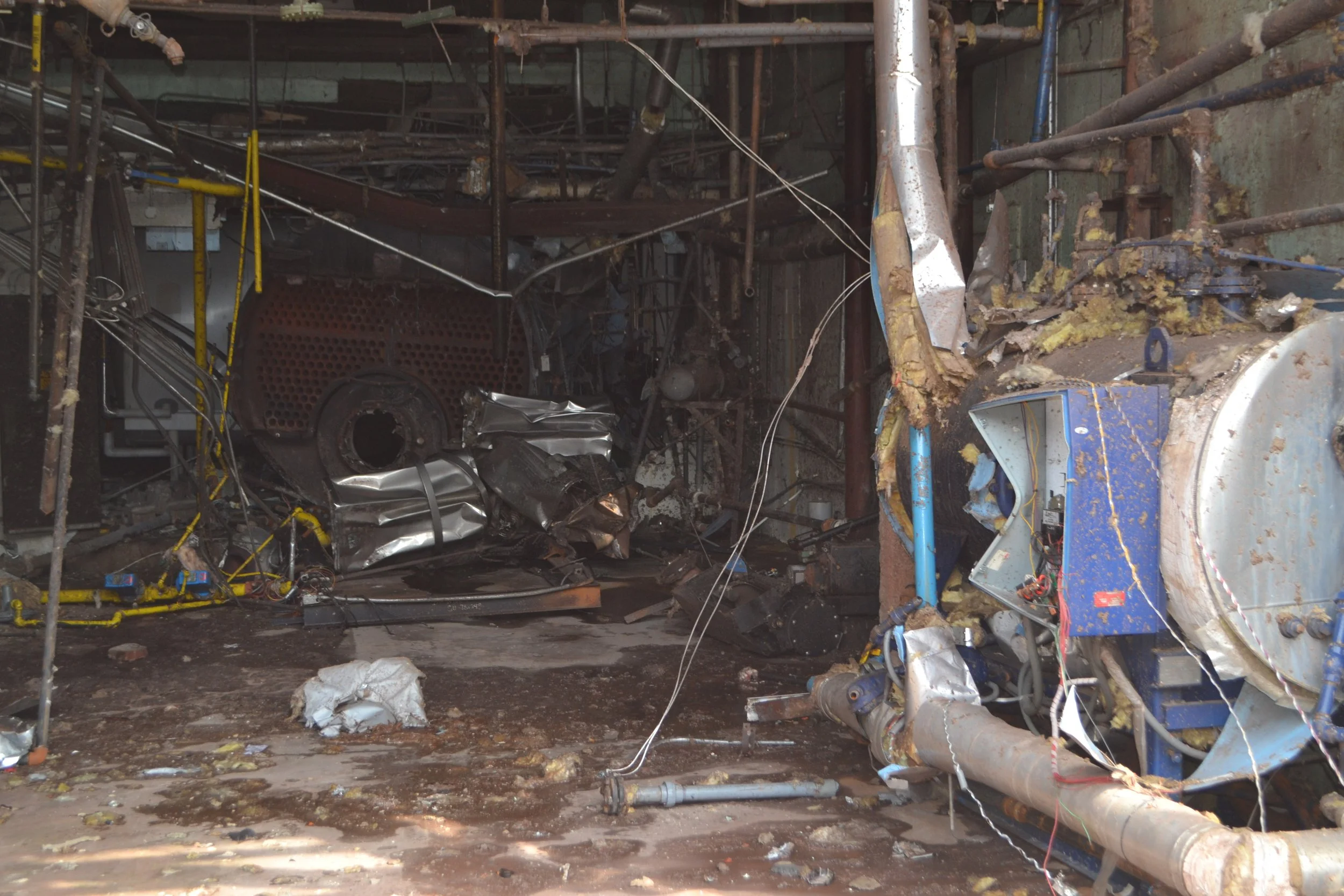

Boiler pushed through the wall, impacting the process tanks (not visible).
Public Safety Impact
Debris from the explosion was ejected onto the surrounding roadways, specifically East King Street and Acton Place. Local authorities closed East King Street between North Massanutten St (Hwy 11) and the railroad crossing, as well as Acton Place between East King St and East Queen St.
Community Impact:
Property Damage: Debris caused damage to the adjacent building at 390 E. King Street and several nearby residences.
Evacuations: Local authorities evacuated twenty residents from the immediate area as a safety precaution. Residents were permitted to return to their homes around midday.
Status: East King Street reopened the following morning. Acton Place remained closed to through traffic pending the completion of the investigation and debris removal.

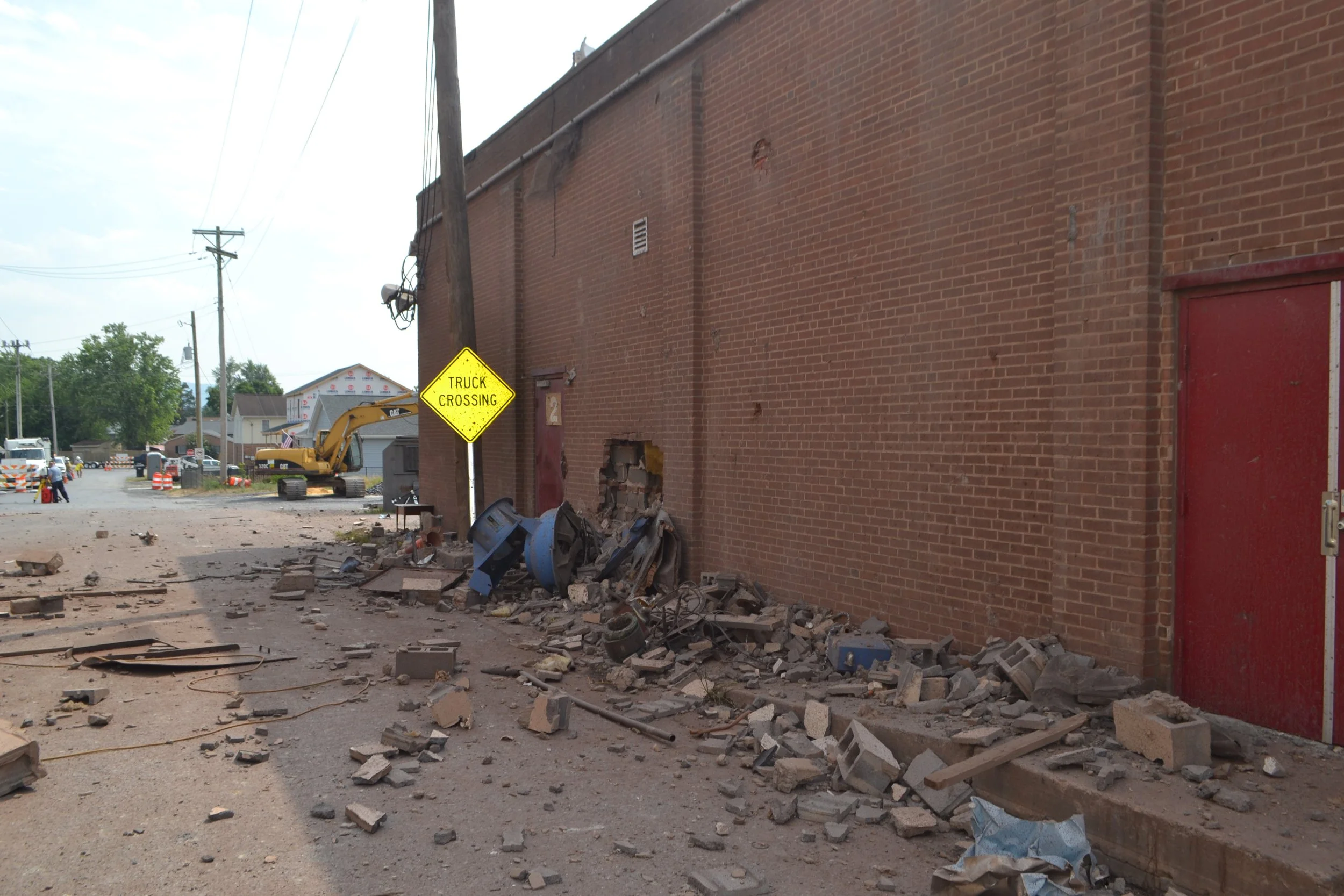

Debris field extending across street.
Emergency Response
The incident drew a multi-agency response due to the structural damage and the potential for hazardous material release. Responding units included Shenandoah County Fire Companies (including Companies 23, 19, and 2), the Frederick County Hazardous Materials Team, the Virginia Department of Emergency Management (VDEM), and Virginia OSHA (VAOSHA).
Next in the Series: Engineering Review – The Steam Explosion. We will examine the Fire Marshal’s findings regarding the "low-water" condition and the thermodynamics of the failure.
Sources
Shenandoah County Fire Marshal’s Report and Images for Incident Number 21-273. Obtained via FOIA.
